Studio Display XDR - Technical Specifications

Studio Display XDR
Display

5K Retina XDR display

  • 27-inch (diagonal) 5K Retina XDR display
  • 5120-by-2880 resolution at 218 pixels per inch
  • Mini-LED backlight with 2304 dimming zones
  • Up to 1000 nits brightness (SDR)
  • 2000 nits peak1 brightness (HDR)
  • 120Hz refresh rate and Adaptive Sync
  • Support for 1 billion colors
  • P3 + Adobe RGB wide color gamuts
  • True Tone technology

Configurable with:

  • Nano-texture glass
Reference Modes

Available reference modes:

  • Studio Display XDR (P3-2000 nits)
  • Studio Display XDR (P3 + Adobe RGB-2000 nits)
  • HDR Video (P3-ST 2084)
  • HDTV Video (BT.709-BT.1886)
  • NTSC Video (BT.601 SMPTE-C)
  • PAL and SECAM Video (BT.601 EBU)
  • Digital Cinema (P3-DCI)
  • Digital Cinema (P3-D65)
  • Design and Print (P3-D50)
  • Design and Print (Adobe RGB-D50)
  • Photography (P3-D65)
  • Photography (Adobe RGB-D65)
  • HDR Photography (P3-D65)
  • Internet and Web (sRGB)
  • Medical Imaging (DICOM-350 nits)2
  • Medical Imaging (DICOM-600 nits)2
Camera
  • 12MP Center Stage camera with Desk View
Audio
  • High-fidelity six-speaker system with force-cancelling woofers
  • Wide stereo sound
  • Support for Spatial Audio when playing music or video with Dolby Atmos
  • Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
  • Support for “Hey Siri”
Connections

Two Thunderbolt 5 ports (up to 120Gb/s) and two USB-C ports (up to 10Gb/s)

  • One upstream Thunderbolt 5 port for host (with 140W host charging)
  • One downstream Thunderbolt 5 port for connecting high-speed accessories or daisy-chaining additional displays
  • Two USB-C ports (up to 10Gb/s) for connecting peripherals, storage, and networking
  • USB-C
  • Thunderbolt 5
Back view of Studio Display XDR, showing two USB-C ports and two Thunderbolt 5 ports
Stand
  • Tilt- and height-adjustable stand
  • Tilt: −5° to +25°
  • Height adjustment: total of 105 mm
  • Orientation: landscape

Configurable with:

  • VESA mount adapter
  • Compatible with 100 x 100 mm VESA stand
  • Orientation: landscape or portrait
Size and Weight

Studio Display XDR with tilt- and height-adjustable stand

Height (bottom position): 18.8 inches (47.8 cm)

Width: 24.5 inches (62.3 cm)

Height (top position): 23.0 inches (58.3 cm)

Weight: 18.7 pounds (8.5 kg)3

Depth: 8.4 inches (21.4 cm)

Side view of Studio Display XDR with tilt- and height -adjustable stand, showing height of display, bottom position Back view of Studio Display XDR with tilt- and height -adjustable stand, showing width measurement Side view of Studio Display XDR with tilt- and height -adjustable stand, showing height of display, top position Stand depth:
8.4 inches 21.4 cm
Height, bottom position:
18.8 inches 47.8 cm
Width:
24.5 inches 62.3 cm
Height, top position:
23.0 inches 58.3 cm
Stand Depth:
8.4 inches 21.4 cm

Studio Display XDR with VESA mount adapter

Height: 14.3 inches (36.2 cm)

Width: 24.5 inches (62.3 cm)

Depth: 1.3 inches (3.3 cm)

Weight: 13.9 pounds (6.3 kg)3

Side view of Studio Display XDR with Vesa mount adapter, showing height and depth measurements Back view of Studio Display XDR with Vesa mount adapter, showing width measurement Stand depth:
1.3 inches 3.3 cm
Height:
14.3 inches 36.2 cm
Width:
24.5 inches 62.3 cm
Compatibility

Studio Display XDR is compatible with the following Mac models with Apple silicon and macOS Tahoe 26.3.1 or later:

  • 16-inch MacBook Pro (2021 and later)
  • 14-inch MacBook Pro (2021 and later)
  • 13-inch MacBook Pro (M1, 2020 and later)
  • 15-inch MacBook Air (2023 and later)
  • 13-inch MacBook Air (M1, 2020 and later)
  • Mac Studio (2022 and later)
  • Mac mini (2020 and later)
  • Mac Pro (2023 and later)
  • 24-inch iMac (2021 and later)

Mac models with M1, M1 Pro, M1 Max, M1 Ultra, M2, and M3 support Studio Display XDR at up to 60Hz. All other Studio Display XDR features are supported.

Studio Display XDR is compatible with the following iPad models with iPadOS 26.3.1 or later:4

  • iPad Pro (M4 and M5)
  • iPad Pro 12.9-inch (3rd–6th generation)
  • iPad Pro 11-inch (1st–4th generation)
  • iPad Air (M2, M3, and M4)
  • iPad Air (5th generation)

iPad Pro (M5) supports Studio Display XDR at 120Hz. All other compatible iPad models support it at 60Hz.

In the Box
  • Studio Display XDR
  • Thunderbolt 5 Pro cable (1 m)

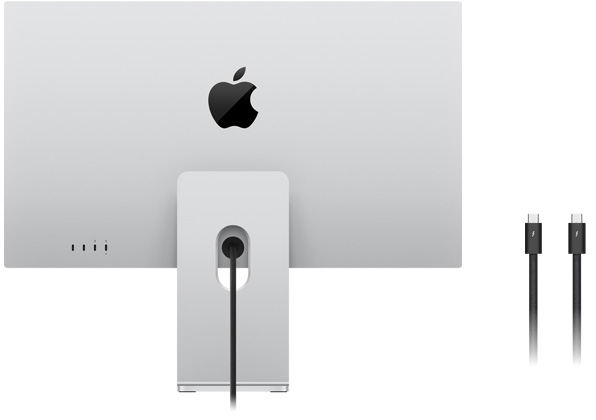

Studio Display XDR and Thunderbolt 5 Pro cable
Electrical and Operating Requirements
  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Relative humidity: 5% to 90% noncondensing
  • Maximum altitude: tested up to 16,400 feet (5000 meters)
Configure to Order
  • Configure your Studio Display XDR with these options at apple.com:
  • Nano-texture glass
  • VESA mount adapter

Studio Display XDR and the Environment

Studio Display XDR is designed to reduce environmental impact:5

Progress toward Apple 2030

Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonize products is rigorous and focuses on transitioning to low-carbon electricity, designing with recycled and low-carbon materials, and prioritizing lower-carbon ways of shipping products, like ocean freight.

See Apple’s commitment

Materials

  • 100% recycled aluminum in the stand
  • 100% recycled copper in multiple printed circuit boards
  • 100% recycled copper and zinc in the AC inlet prongs
  • 80% recycled glass in the standard glass
  • 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
  • 100% recycled rare earth elements in all magnets

Energy

ENERGY STAR® certified6

Packaging

100% fiber-based packaging7

Waste

No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program8

Smarter chemistry9

All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification(PDF) opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report(PDF) opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.
