MacBook Pro Technical Specifications

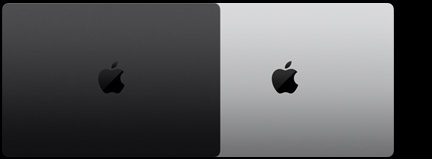

Space Black Silver
Apple M5 chip
- 10-core CPU with 4 super cores and 6 efficiency cores
- 10-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 153GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
Apple M5 Pro chip
- 15-core CPU with 5 super cores and 10 performance cores
- 16-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
Configurable to:
- M5 Pro with 18-core CPU and 20-core GPU
- or M5 Max with 18-core CPU and 32-core GPU (460GB/s memory bandwidth)
- or M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
Apple M5 Pro chip
- 18-core CPU with 6 super cores and 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
Configurable to:
- M5 Max with 18-core CPU and 32-core GPU (460GB/s memory bandwidth)
- or M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
Apple M5 Max chip
- 18-core CPU with 6 super cores and 12 performance cores
- 32-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 460GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
16GB, 24GB, or 32GB
- 16GB, 24GB, or 32GB unified memory
Configurable to:
- 24GB or 32GB
24GB
- 24GB unified memory
Configurable to:
- 36GB (M5 Max with 32-core GPU)
- or 48GB (M5 Pro or M5 Max with 40-core GPU)
- or 64GB (M5 Pro with 20-core GPU or M5 Max with 40-core GPU)
- or 128GB (M5 Max with 40-core GPU)
24GB
- 24GB unified memory
Configurable to:
- 36GB (M5 Max with 32-core GPU)
- or 48GB (M5 Pro or M5 Max with 40-core GPU)
- or 64GB (M5 Pro with 20-core GPU or M5 Max with 40-core GPU)
- or 128GB (M5 Max with 40-core GPU)
36GB
- 36GB unified memory
Configurable to:
- 48GB, 64GB, or 128GB (M5 Max with 40-core GPU)
1TB
1TB SSD
Configurable to:
2TB or 4TB
1TB or 2TB
1TB or 2TB SSD
Configurable to:
2TB or 4TB
2TB
2TB SSD
Configurable to:
4TB
2TB
2TB SSD
Configurable to:
4TB or 8TB

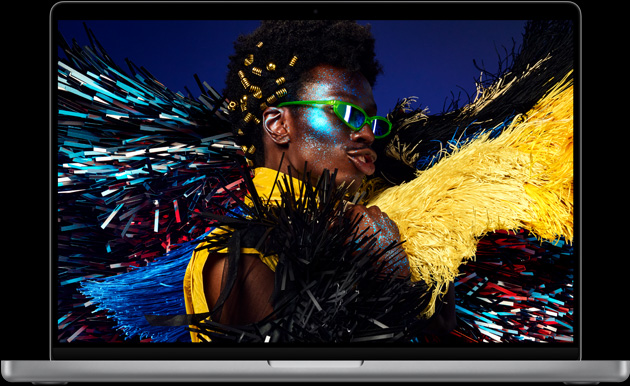

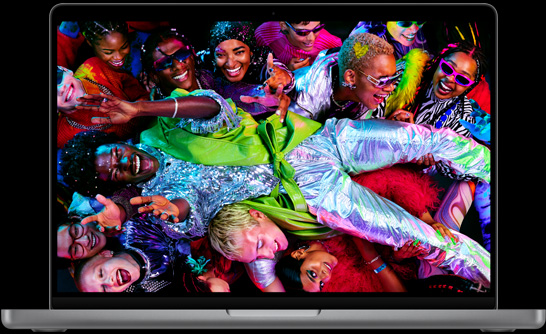

Liquid Retina XDR display
- 14.2-inch (diagonal) Liquid Retina XDR display;2 3024-by-1964 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1000 nits sustained full-screen, 1600 nits peak3 (HDR content only)
- SDR brightness: up to 1000 nits (outdoor)
Color
- 1 billion colors
- Wide color (P3)
- True Tone technology
Refresh rates
- ProMotion technology for adaptive refresh rates up to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Configurable with:
- Nano-texture display
M54
- Up to 24 hours video streaming
- Up to 16 hours wireless web
- 72.4-watt-hour lithium-polymer battery
- 70W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with 96W USB-C Power Adapter or higher
M5 Pro5
- Up to 22 hours video streaming
- Up to 14 hours wireless web
- 72.4-watt-hour lithium-polymer battery
- 70W USB-C Power Adapter (included with M5 Pro with 16-core GPU)
- 96W USB-C Power Adapter (included with M5 Pro with 20-core GPU, configurable with M5 Pro with 16-core GPU)
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with 96W USB-C Power Adapter or higher
M5 Max5
- Up to 20 hours video streaming
- Up to 13 hours wireless web
- 72.4-watt-hour lithium-polymer battery
- 96W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with included 96W USB-C Power Adapter or higher
SDXC card slot
HDMI port
3.5 mm headphone jack
MagSafe 3 port
M5
- Three Thunderbolt 4 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 4 (up to 40Gb/s)
- USB 4 (up to 40Gb/s)
headphone jack
M5 Pro and M5 Max
- Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
headphone jack
M5
- Supports up to two external displays over any combination of Thunderbolt and HDMI ports:
- Two displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to two external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 4 (USB-C) ports support native DisplayPort 1.4 speeds
M5 Pro
- Supports up to three external displays over any combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
M5 Max
- Supports up to four external displays over any combination of Thunderbolt and HDMI ports:
- Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to four external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
- Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10+/HDR10, and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

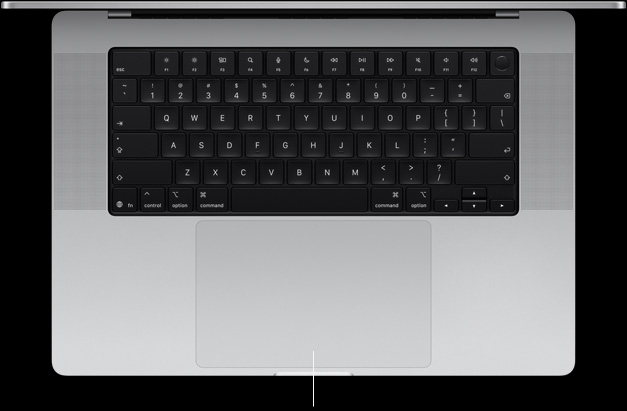

Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- High-fidelity six-speaker sound system with force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max7
- Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Intelligence9
Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.
Learn moreAccessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Learn moreFeatures include:
- VoiceOver
- Zoom
- Motion, display, and text settings
- Accessibility Reader
- Voice Control
- Switch Control
- Closed Captions
- Live Captions
- Personal Voice and Live Speech

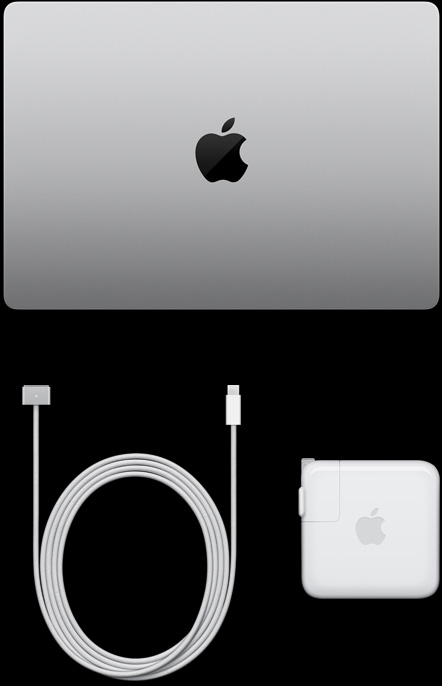

M5
- 14-inch MacBook Pro
- 70W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
M5 Pro with 16‑core GPU
- 14-inch MacBook Pro
- 70W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
M5 Pro with 20‑core GPU or M5 Max
- 14-inch MacBook Pro
- 96W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
- Configure your MacBook Pro with these options at apple.com:
M5
- 24GB or 32GB unified memory
- 2TB or 4TB SSD
- 96W USB-C Power Adapter
- Nano-texture display
M5 Pro and M5 Max
- M5 Pro with 18-core CPU, 20-core GPU, and 16-core Neural Engine
- M5 Max with 18-core CPU, 32-core GPU, and 16-core Neural Engine
- M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine
- 36GB unified memory (M5 Max with 32-core GPU)
- 48GB unified memory (M5 Pro and M5 Max with 40-core GPU)
- 64GB unified memory (M5 Pro with 20-core GPU and M5 Max with 40-core GPU)
- 128GB unified memory (M5 Max with 40-core GPU)
- 2TB or 4TB SSD (M5 Pro and M5 Max)
- 8TB SSD (M5 Max)
- 96W USB-C Power Adapter (included with M5 Pro with 20-core GPU and M5 Max)
- Nano-texture display
and
the
Environment
The 14-inch MacBook Pro is designed to reduce environmental impact:11
See the 14-inch MacBook Pro (M5) Product Environmental Report (PDF) - opens in new tab See the 14-inch MacBook Pro (M5 Pro or M5 Max) Product Environmental Report (PDF) - opens in new tabProgress toward Apple 2030
Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonize products is rigorous and focuses on transitioning to low-carbon electricity, designing with recycled and low-carbon materials, and prioritizing lower-carbon ways of shipping products, like ocean freight.
See Apple’s commitmentMaterials
The 14‑inch MacBook Pro is made with 45% recycled content,12 including:
- 100% recycled aluminum in the enclosure
- 100% recycled cobalt and 95% recycled lithium in the battery
- 100% recycled copper in multiple printed circuit boards and a thermal module component
- 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
- 100% recycled rare earth elements in all magnets
- 80% or more recycled steel in the keyboard feature plate and speaker components
Energy
- 50% of manufacturing electricity for the 14-inch MacBook Pro is sourced from low-carbon electricity13
- ENERGY STAR® certified14
Packaging
- 100% fiber-based packaging15
Waste
No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program16
Smarter chemistry17
All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification(PDF) opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report(PDF) opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.

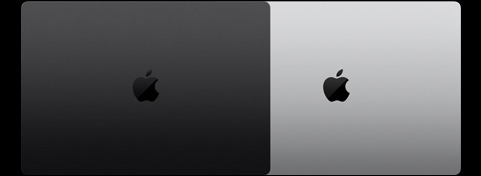

Space Black Silver
Apple M5 Pro chip
- 18-core CPU with 6 super cores and 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
Configurable to:
- M5 Max with 18-core CPU and 32-core GPU (460GB/s memory bandwidth)
- or M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
Apple M5 Pro chip
- 18-core CPU with 6 super cores and 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
Configurable to:
- M5 Max with 18-core CPU and 32-core GPU (460GB/s memory bandwidth)
- or M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
Apple M5 Max chip
- 18-core CPU with 6 super cores and 12 performance cores
- 32-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 460GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)
Apple M5 Max chip
- 18-core CPU with 6 super cores and 12 performance cores
- 40-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 614GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
24GB
24GB unified memory
Configurable to:
- 36GB (M5 Max with 32-core GPU)
- or 48GB (M5 Pro or M5 Max with 40-core GPU)
- or 64GB (M5 Pro with 20-core GPU or M5 Max with 40-core GPU)
- or 128GB (M5 Max with 40-core GPU)
48GB
48GB unified memory
Configurable to:
- 64GB (M5 Pro with 20-core GPU or M5 Max with 40-core GPU)
- or 128GB (M5 Max with 40-core GPU)
36GB
36GB unified memory
Configurable to:
- 48GB, 64GB, or 128GB (M5 Max with 40-core GPU)
48GB
48GB unified memory
Configurable to:
- 64GB or 128GB
1TB
1TB SSD
Configurable to:
2TB or 4TB
1TB
1TB SSD
Configurable to:
2TB or 4TB
2TB
2TB SSD
Configurable to:
4TB or 8TB
2TB
2TB SSD
Configurable to:
4TB or 8TB
Liquid Retina XDR display
16.2-inch (diagonal) Liquid Retina XDR display;2 3456-by-2234 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1000 nits sustained full-screen, 1600 nits peak3 (HDR content only)
- SDR brightness: up to 1000 nits (outdoor)
Color
- 1 billion colors
- Wide color (P3)
- True Tone technology
Refresh rates
- ProMotion technology for adaptive refresh rates up to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Configurable with:
Nano-texture display
M5 Pro
- Up to 24 hours video streaming
- Up to 17 hours wireless web
- 100-watt-hour lithium-polymer battery18
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with included 140W USB-C Power Adapter
M5 Max
- Up to 22 hours video streaming
- Up to 16 hours wireless web
- 100-watt-hour lithium-polymer battery18
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with included 140W USB-C Power Adapter
SDXC card slot
HDMI port
3.5 mm headphone jack
MagSafe 3 port
Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
headphone jack
M5 Pro
- Supports up to three external displays over any combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
M5 Max
- Supports up to four external displays over any combination of Thunderbolt and HDMI ports:
- Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to four external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
- Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10+/HDR10, and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures
Apple N1 wireless networking chip
- Wi-Fi 7 (802.11be)6
- Bluetooth 6
- Thread networking technology
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- High-fidelity six-speaker sound system with force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max7
- Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Intelligence9
Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.
Learn moreAccessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Learn moreFeatures include:
- VoiceOver
- Zoom
- Motion, display, and text settings
- Accessibility Reader
- Voice Control
- Switch Control
- Closed Captions
- Live Captions
- Personal Voice and Live Speech

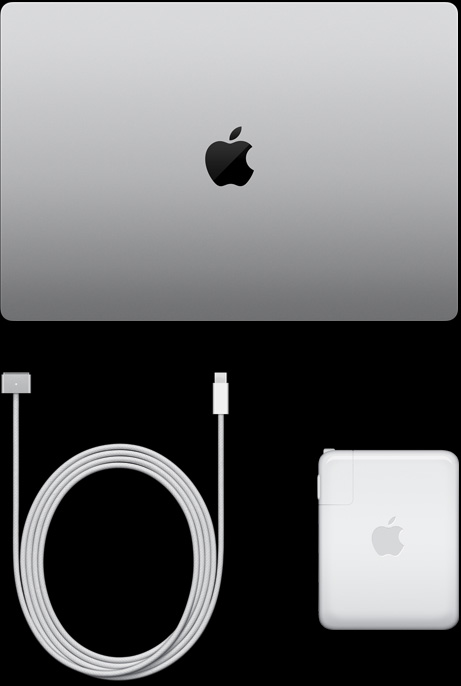

- 16-inch MacBook Pro
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
- Configure your MacBook Pro with these options at apple.com:
- M5 Max with 18-core CPU, 32-core GPU, and 16-core Neural Engine
- M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine
- 36GB unified memory (M5 Max with 32-core GPU)
- 48GB unified memory (M5 Pro and M5 Max with 40-core GPU)
- 64GB unified memory (M5 Pro with 20-core GPU and M5 Max and 40-core GPU)
- 128GB unified memory (M5 Max with 40-core GPU)
- 2TB or 4TB SSD (M5 Pro and M5 Max)
- 8TB SSD (M5 Max)
- Nano-texture display
and
the
Environment
The 16-inch MacBook Pro is designed to reduce environmental impact:11
See the 16-inch MacBook Pro Product Environmental Report (PDF) - opens in new tabProgress toward Apple 2030
- Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonize products is rigorous and focuses on transitioning to low-carbon electricity, designing with recycled and low-carbon materials, and prioritizing lower-carbon ways of shipping products, like ocean freight.
Materials
The 16‑inch MacBook Pro is made with 45% recycled content,12 including:
- 100% recycled aluminum in the enclosure and thermal module stage
- 100% recycled cobalt and 95% recycled lithium in the battery
- 100% recycled copper in multiple printed circuit boards and thermal module components
- 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
- 100% recycled rare earth elements in all magnets
- 80% or more recycled steel in the keyboard feature plate and speaker components
Energy
- 50% of manufacturing electricity for the 16-inch MacBook Pro is sourced from low-carbon electricity13
- ENERGY STAR® certified14
Packaging
- 100% fiber-based packaging15
Waste
No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program16
Smarter chemistry17
All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification(PDF) opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report(PDF) opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.
